360°

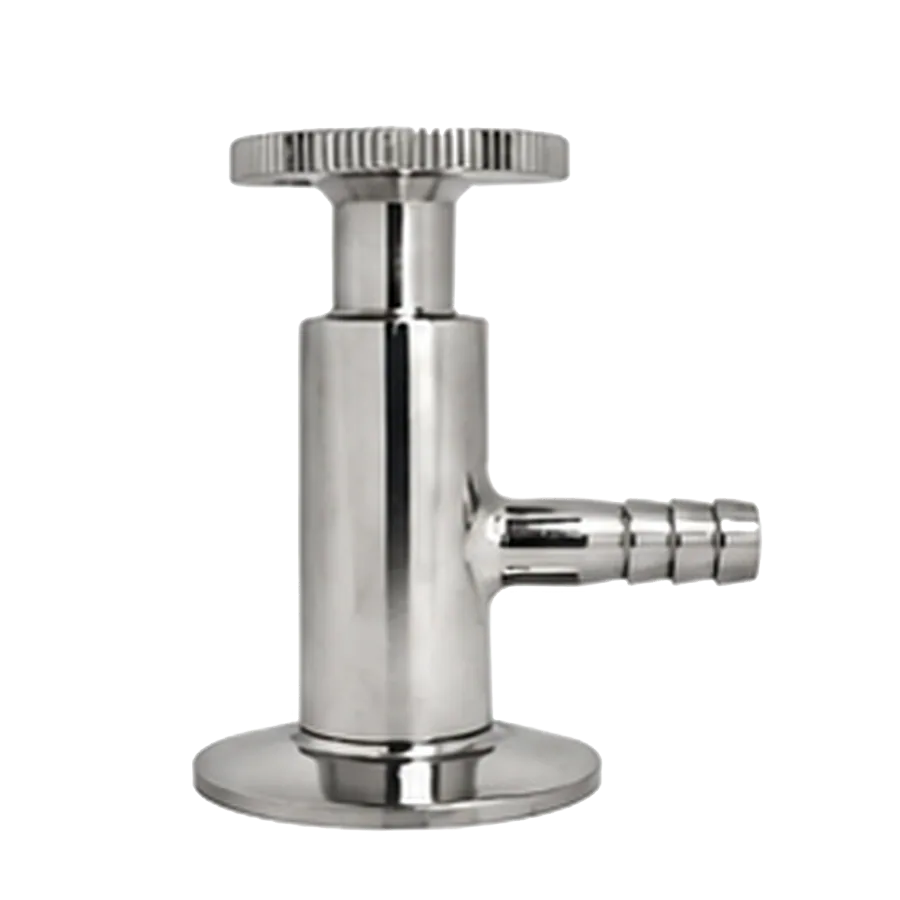

Sampling Valve
Hygienic Valves
The hygienic sampling valve allows samples to be taken safely from tanks, pipelines or equipment during the process without any risk of cross-contamination. With its DIN compliant hygienic design it is an essential part of quality control processes in the food, beverage, pharmaceutical and chemical industries.
- Product Code
- MDR-NAV
- Product Group
- Hygienic Valves
- Material
- Connection Type
- Clamp
- Standard
- Dimension Series: DIN DIN
- Surface
- Media contact surface: Ra ≤ 0.8 µm
Technical Drawing
D25 mmD150.5 mmL43.5 mmDimension Table
| Size | D | D1 | L |
|---|---|---|---|
| Ø25 | 25 | 50.5 | 43.5 |
| Ø32 | 32 | 50.5 | 43.5 |
