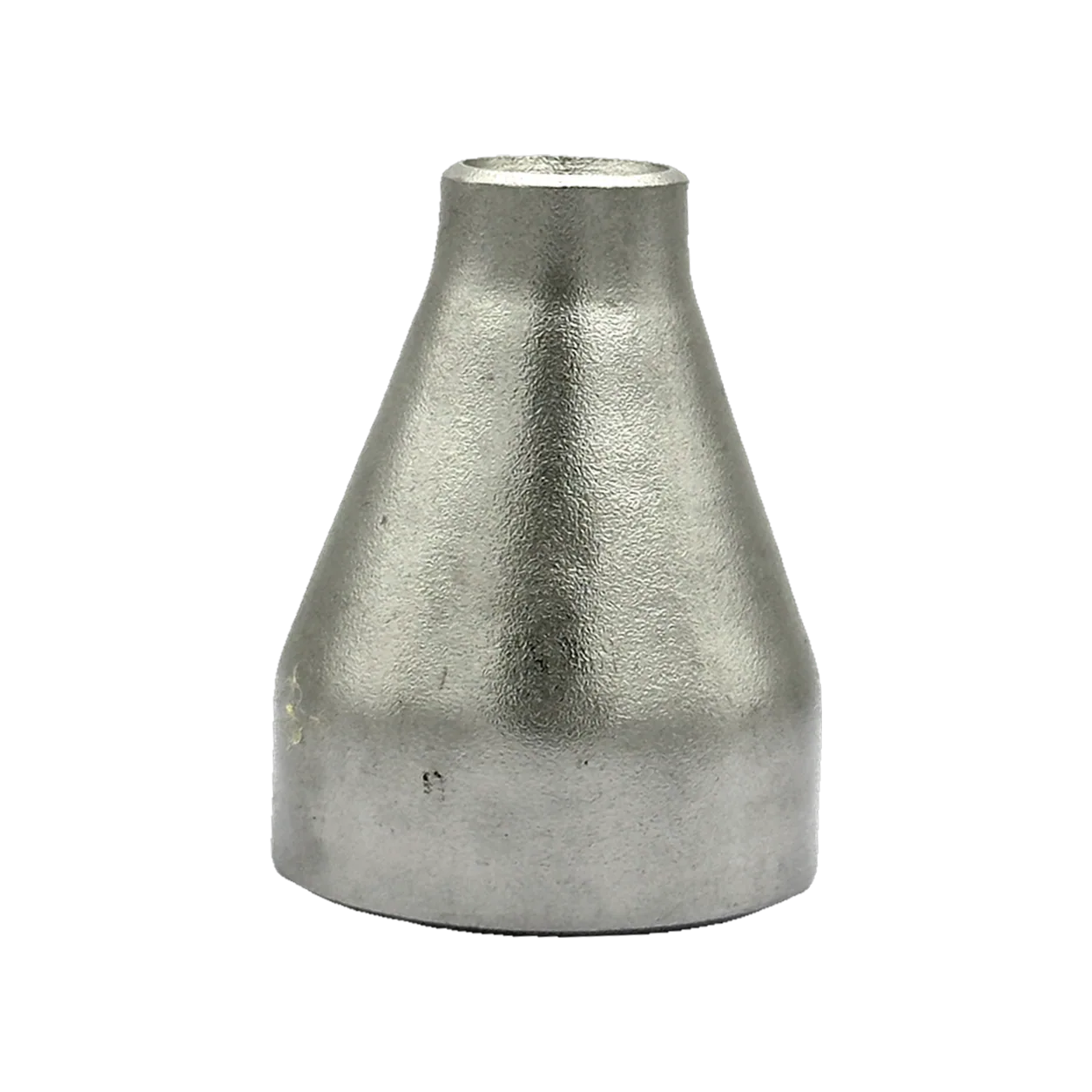

Konsantrik Redüksiyon

Name: Konsantrik Redüksiyon
Brand: Modera Paslanmaz
SKU: MDR-EKR

Boru ve Bağlantı Elemanları

Konsantrik redüksiyon, endüstriyel boru hatlarında farklı çaplardaki boruları aynı eksen üzerinde, güvenli ve sızdırmaz şekilde birleştirir.

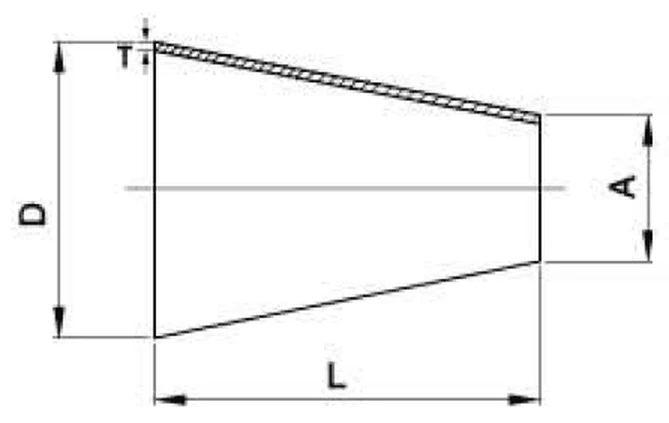

Teknik Çizim

Ölçü seçin

T2.11 mmD26.67 mmA21.34 mmL38.1 mm

Ölçü	D1	D2	L	T1 SCH10S	T2 SCH10S	T1 SCH40S	T2 SCH40S
3/4" x 1/2"	26.67	21.34	38.1	2.11	2.11	2.87	2.77
1" x 1/2"	33.40	21.34	50.8	2.77	2.11	3.38	2.77
1" x 3/4"	33.40	26.67	50.8	2.77	2.11	3.38	2.87
1 1/4" x 1"	42.16	33.40	50.8	2.77	2.77	3.56	3.38
1 1/2" x 1/2"	48.26	21.34	63.5	2.77	2.11	3.68	2.77
1 1/2" x 3/4"	48.26	26.67	63.5	2.77	2.11	3.68	2.87
1 1/2" x 1"	48.26	33.40	63.5	2.77	2.77	3.68	3.38
1 1/2" x 1 1/4"	48.26	42.16	63.5	2.77	2.77	3.68	3.56
2" x 3/4"	60.32	26.67	76.2	2.77	2.11	3.91	2.87
2" x 1"	60.32	33.40	76.2	2.77	2.77	3.91	3.38
2" x 1 1/4"	60.32	42.16	76.2	2.77	2.77	3.91	3.56
2" x 1 1/2"	60.32	48.26	76.2	2.77	2.77	3.91	3.68
2 1/2" x 1"	73.02	33.40	88.9	3.05	2.77	5.16	3.38
2 1/2" x 1 1/4"	73.02	42.16	88.9	3.05	2.77	5.16	3.56
2 1/2" x 1 1/2"	73.02	48.26	88.9	3.05	2.77	5.16	3.68
2 1/2" x 2"	73.02	60.32	88.9	3.05	2.77	5.16	3.91
3" x 1"	88.90	33.40	88.9	3.05	2.77	5.49	3.38
3" x 1 1/4"	88.90	42.16	88.9	3.05	2.77	5.49	3.56
3" x 1 1/2"	88.90	48.26	88.9	3.05	2.77	5.49	3.68
3" x 2"	88.90	60.32	88.9	3.05	2.77	5.49	3.91
3" x 2 1/2"	88.90	73.02	88.9	3.05	3.05	5.49	5.16
4" x 1 1/2"	114.30	48.26	101.6	3.05	2.77	6.02	3.68
4" x 2"	114.30	60.32	101.6	3.05	2.77	6.02	3.91
4" x 2 1/2"	114.30	73.02	101.6	3.05	3.05	6.02	5.16
4" x 3"	114.30	88.90	101.6	3.05	3.05	6.02	5.49
5" x 3"	141.30	88.90	127	3.40	3.05	6.55	5.49
5" x 4"	141.30	114.30	127	3.40	3.05	6.55	6.02
6" x 2 1/2"	168.27	73.02	139.7	3.40	3.05	7.11	5.16
6" x 3"	168.27	88.90	139.7	3.40	3.05	7.11	5.49
6" x 4"	168.27	114.30	139.7	3.40	3.05	7.11	6.02
6" x 5"	168.27	141.30	139.7	3.40	3.40	7.11	6.55
8" x 4"	219.08	114.30	152.4	3.76	3.05	8.18	6.02
8" x 5"	219.08	141.30	152.4	3.76	3.40	8.18	6.55
8" x 6"	219.08	168.27	152.4	3.76	3.40	8.18	7.11
