Sight Glass
Tank Equipment

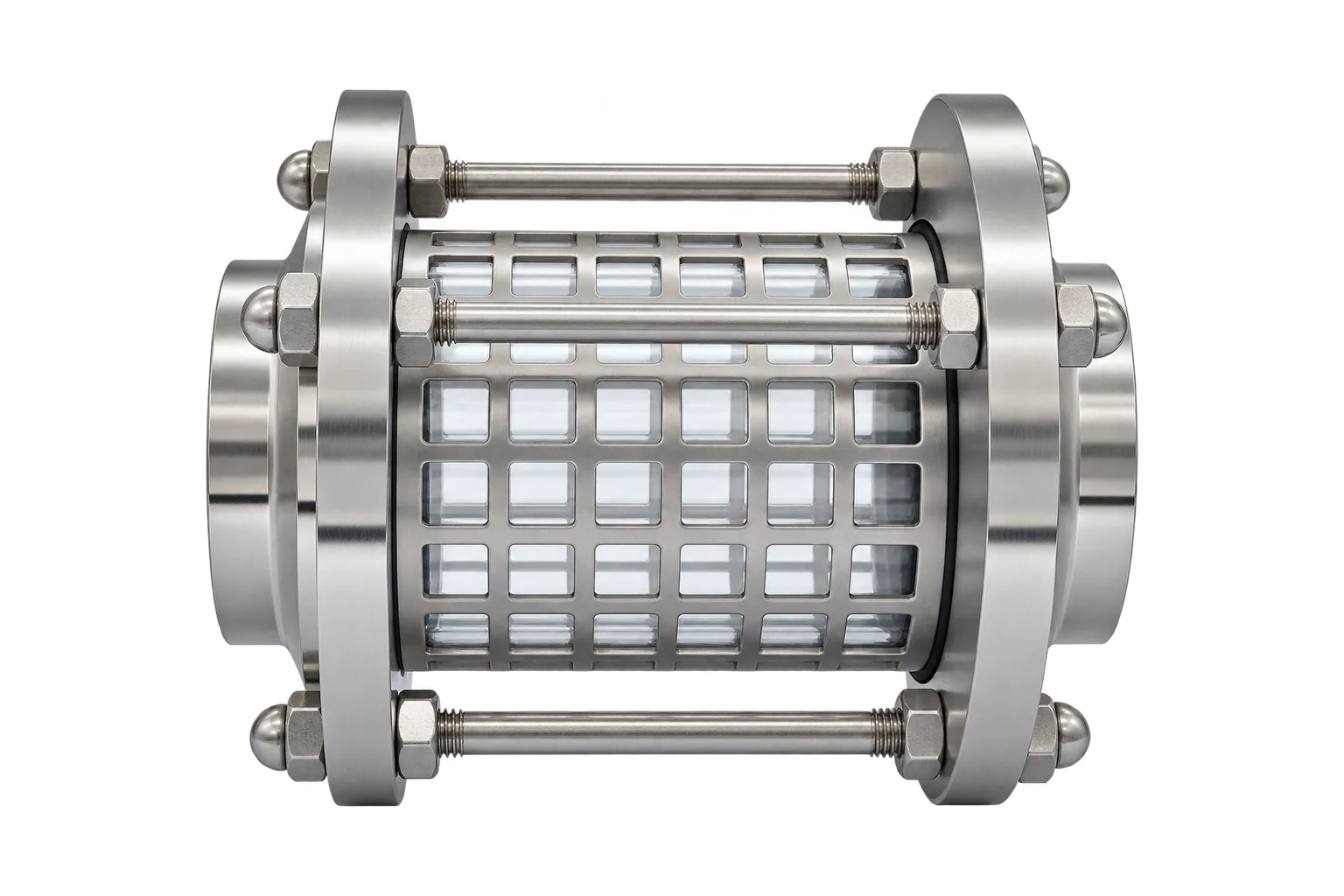

The hygienic sight glass allows the fluid in the pipeline to be monitored visually. It is used to follow the product flow and keep processes under control; its smooth surface makes it compatible with CIP (clean-in-place) systems.
- Product Code
- MDR-TGC
- Product Group
- Tank Equipment
- Material
- Connection Type
- Welded
- Surface
- Mechanical polishing

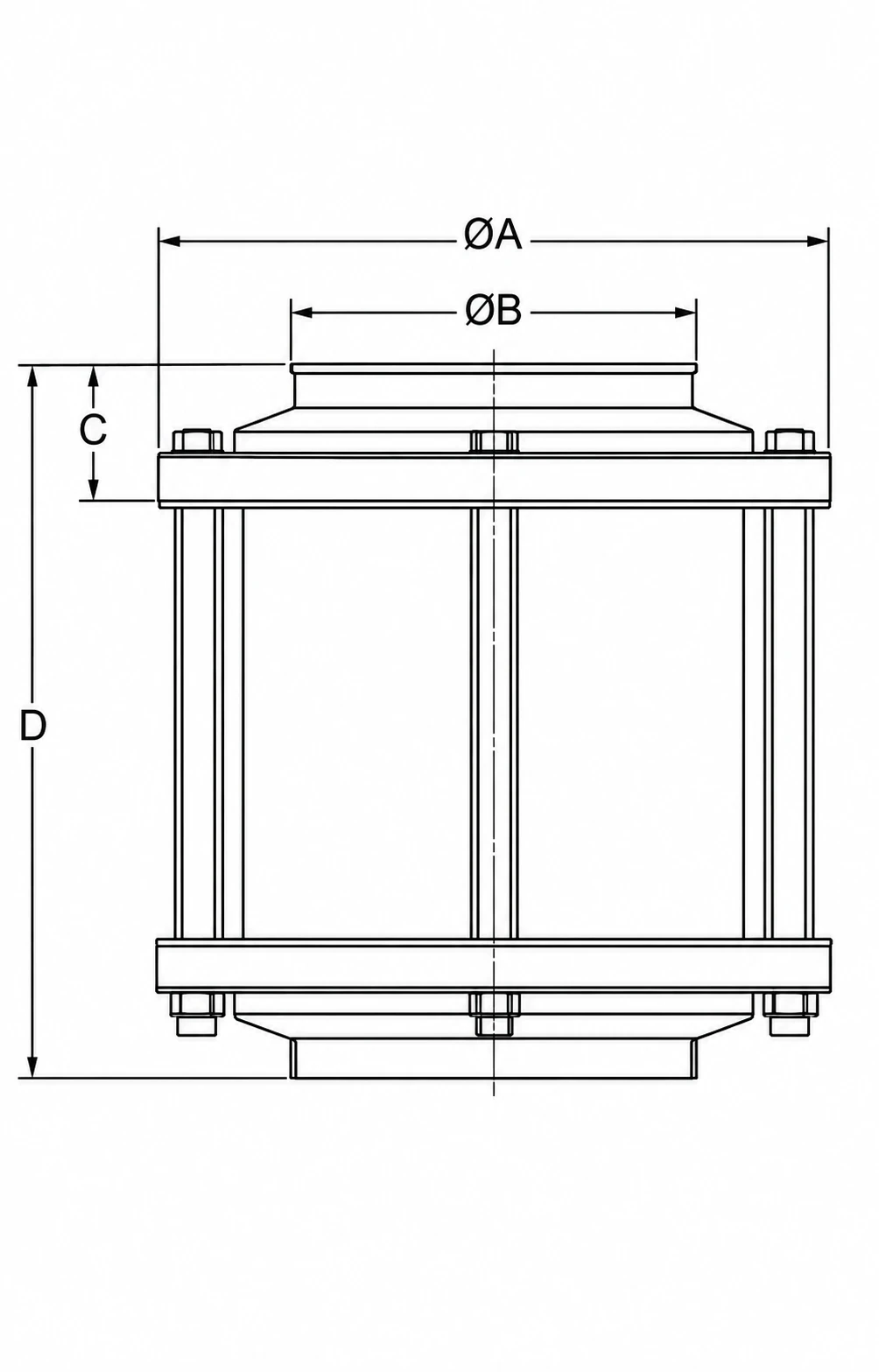

Technical Drawing
A78 mmB18 mmC25 mmD135 mmDimension Table
| Size | A | B | C | D |
|---|---|---|---|---|
| DN15 | 78 | 18 | 25 | 135 |
| DN20 | 78 | 22 | 25 | 135 |
| DN25 | 78 | 28 | 25 | 135 |
| DN32 | 86 | 34 | 25 | 139 |
| DN40 | 90 | 40 | 25 | 139 |
| DN50 | 106 | 52 | 26 | 140 |
| DN65 | 124 | 70 | 28 | 143 |
| DN80 | 140 | 85 | 29 | 140.4 |
| DN100 | 159 | 104 | 32 | 145.6 |
